توضیحات

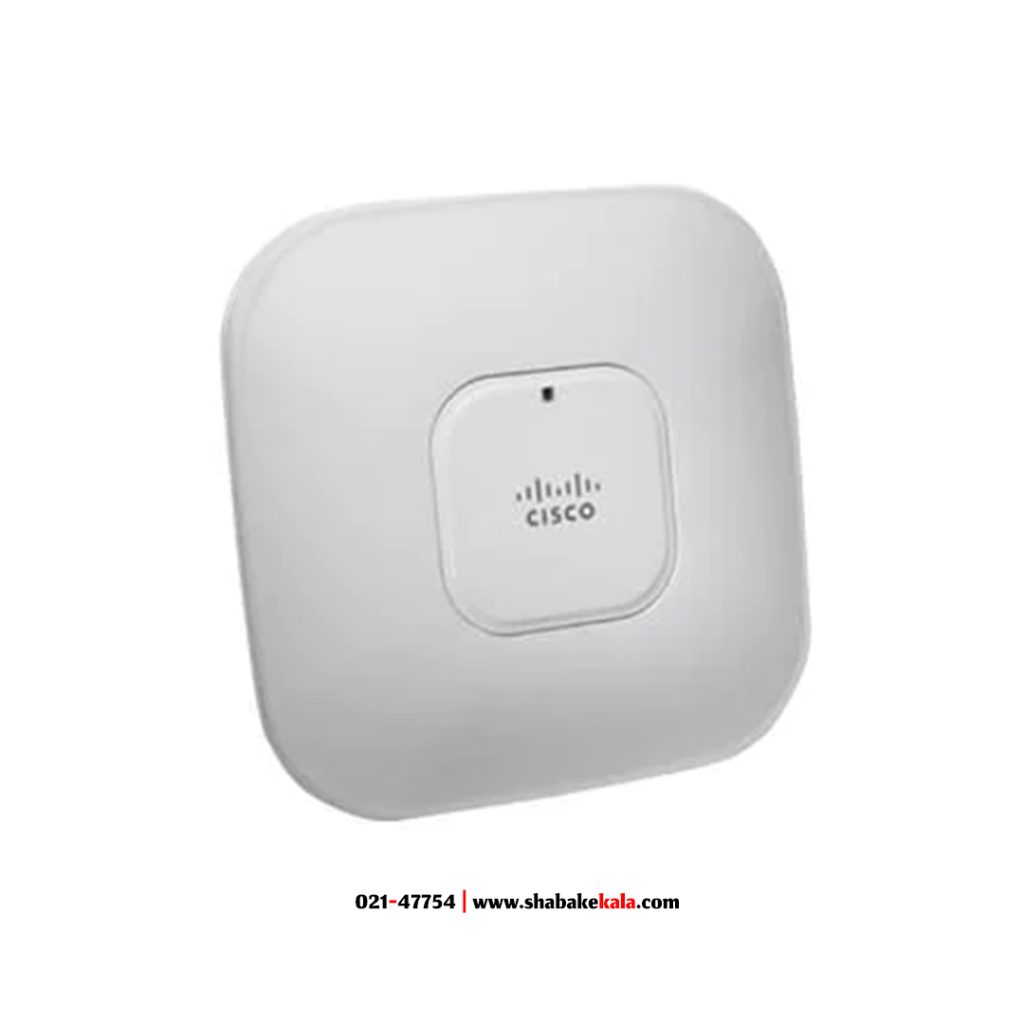

مشخصات اکسس پوینت سیسکو AIR-CAP3502I-E-K9 :
- نوع اتصال: Wireless
- نوع آنتن : 2 آنتن داخلی با قدرت گیرندگی 4dBi
- نرخ ارسال دیتا: Up to 300Mbps
- سازگار با استاندارد های: IEEE 802.11a, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x
- پروتکل وایرلس: 802.11a/b/g/n
- باند فرکانس کاری: 2.4 و 5 گیگاهرتز
- رابط دستگاه: : Ethernet Port
- نشانگر LED: دارد
- قابلیت PoE: دارد
Cisco Aironet 3500 series access points with Cisco CleanAir technology are the industry’s first 802.11n access points to create a self-healing, self-optimizing wireless network. CleanAir technology is a system wide feature of the Cisco Unified Wireless Network that improves air quality by detecting RF interference that other systems can’t recognize, identifying the source, locating it on a map, and then making automatic adjustments to optimize wireless coverage. These innovative access points provide the highest-performance 802.11n connectivity for mission-critical mobility. By intelligently avoiding interference, the 3500 series offers performance protection for 802.11n networks to help ensure reliable application delivery.
Specification
Device TypeRadio access point
Width22.1 cm
Depth22.1 cm
Height4.7 cm
Weight1.04 kg
Processor / Memory / Storage
RAM Installed ( Max )128 MB
Flash Memory Installed (Max)32 M
Networking
Form FactorExternal
Connectivity TechnologyWireless
Data Transfer Rate300 Mbps
Line Coding FormatCCK
Data Link ProtocolIEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n
Spread Spectrum MethodOFDM
Status IndicatorsStatus
FeaturesAuto-sensing per device, power over Ethernet (PoE), MIMO technology, Wi-Fi Multimedia (WMM) support, CleanAir technology, Cisco M-Drive technology
Encryption AlgorithmAES, TLS, PEAP, TTLS, TKIP
Authentication MethodMS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST
Compliant StandardsIEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n
Aerial
AntennaInternal integrated
DirectivityOmni-directional
Gain Level4 dBi
Expansion / Connectivity
Interfaces1 x network / power – Ethernet 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ 1 x management – console – RJ-45
Miscellaneous
Compliant StandardsVCCI, ICES-003, EN 300.328, EN 301.489.1, EN 301.489.17, FCC Part 15.247, RSS-210, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15.107, FCC Part 15.109, EN 301.893, FCC Part 15.407, EN 60601-1-2, ARIB STD-T66, ARIB STD-T71, ARIB STD-T33, CSA C22.2 No. 60950-1
Power
Power Over Ethernet (PoE) SupportedYes
Power DevicePower adapter – external
Voltage RequiredAC 120/230 V ( 50/60 Hz )
پ.ن: شما عزیزان میتوانید محصولات شبکه از سوئیچ سیسکو، روتر سیسکو، ماژول سیسکو، اکسس پوینت سیسکو، تلفن سیسکو و لایسنس سیسکو را شبکه کالا با بهترین قیمت و کیفیت خریداری کنید.
